Fabrication Services

Based over three workshops covering a total of 6,500 square foot and serviced by 3,5 & 10 ton cranes.

Our fabrication facilities are fully equipped offering an extensive range of services rarely seen under one roof in Wales. With the ability of plate rolling, section bending and rolling, press break forming, shearing, sawing and profile services.

Recent acquisitions include a 6kw Bodor laser with 3 m x 1500 bed size complimenting our Zinser profile and pipe cutting machine. Offering a cost effective sub contract cutting service for a variety of materials and thicknesses up to 250mm.

Laser Cutting

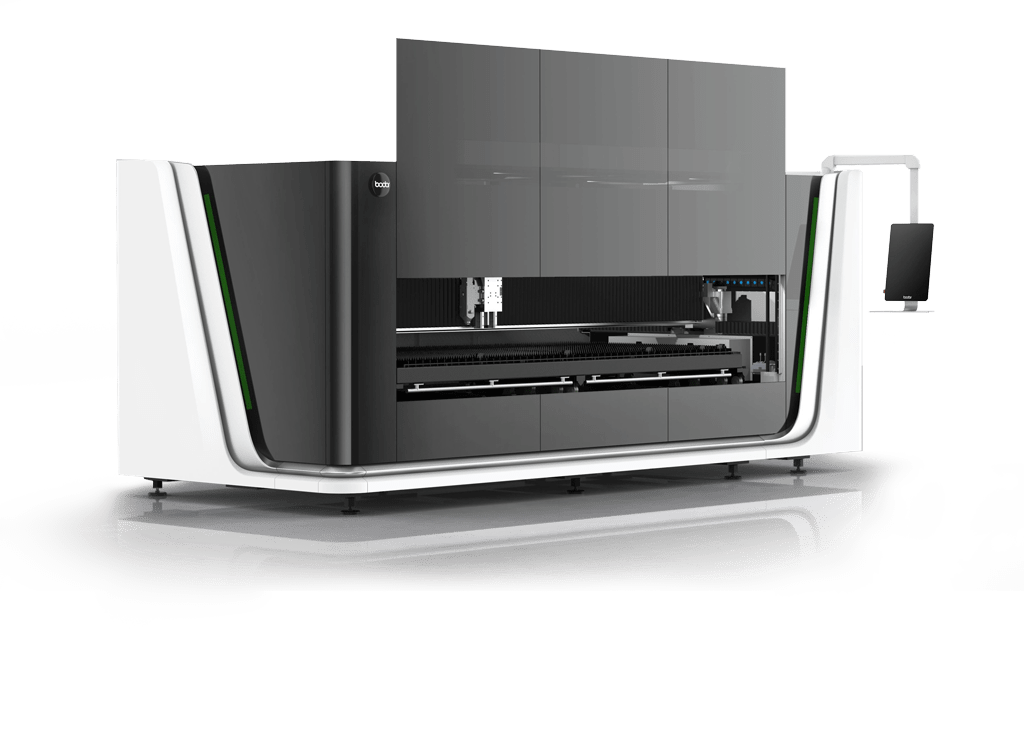

Boder I7 6 KW Laser Cutting Machine

Working Area3048 x 1524 mm



MaterialsMaximum Thickness
Carbon Steel25mm
Stainless Steel22mm
Aluminium16mm
Brass15mm

Profile Cutting & Bevelling

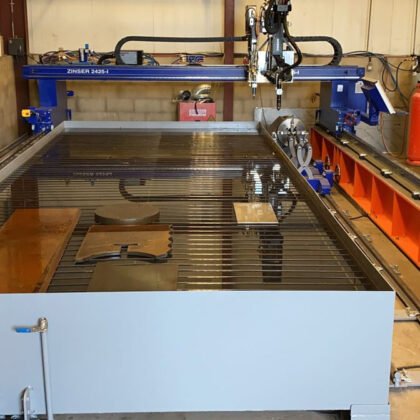

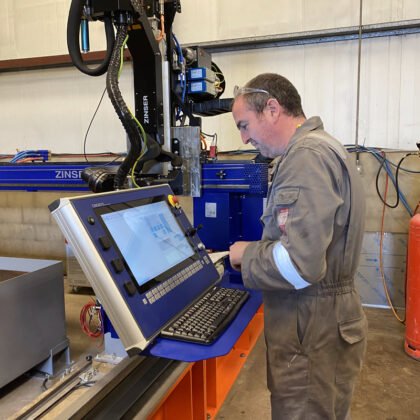

Zinser CNC Profile Cutting Machine

Machine Specification80mm Plasma facility ferrous/non ferrous with height sensing plasma torches
5 axis plate/profile bevelling utilising  Zinser’s “switch“ system.
Maximum Cutting Capacity6 mtrs length x 2500 wide
300mm thick ferrous materials
45 degrees x 45 mm thick & up to 60 degree x 100 mm thick

Profile Pipe Cutting

6 axis tube profiling50 mm – 620 mm diameter x 6 m long
6 axis hollow sectionup to 450 mm square/rectangular section x 6 m long
Branches, manifolds and insetsFull state of art CNC design package available for any conceivable shape with thickness ability up to 45 mm non ferrous & 100 mm ferrous.

Ring Rolling/ Section Bending

Maximum Capacity

Angles150 x 150 x 15mm Toe in/Toe out
Flat bars on edge130 x 40mm
Channels254 x 152mm Toe in/Toe out
Joists203 x 130mm
Tees130 x 130mm
Rounds/ Square barsUp to 100 x 100 mm
Hollow SectionsUp to 100 x 100mm
TubesUp to 6” N.B. SCHD

Plate Rolling

Maximum capacity2000 x 20 mm
Machines Available2

Shearing

Maximum capacity3m x 10 mm

Pressbreak Forming

Machine Specification300 Ton CNC with extensive range of tooling.
Maximum capacity300 Ton x 3700mm wide.

Punching

80 Ton Geka Hydracrop 80/150

Flat shear450 x 15, 300 x 20
Shear for angles130 x 130 x 13
Cropper45mm
Punching40 x 14

Sawing

Maximum capacity450 x 300, 375 dia

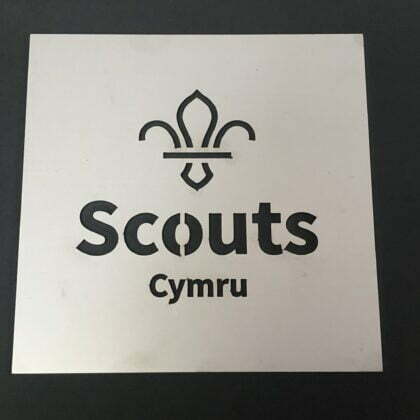

Our 6kw laser, cutting 3mm stainless steel signs. Part of a project for a Welsh Scouts group. #lasercut #lasercutmetal #lasercuttingmachine #lasercutsigns #stainlesssteel #ScoutsUK #scouts #bartlettengineeringco #bartlettengineeringpembrokeshire

Posted by Bartlett Engineering Co. on Tuesday, 31 January 2023
